監視システム( xymon )をsrcからinstall

構築にあたっては、次のurlを参考にしました。(とても分かりやすいです)
http://www.server-kanshi.net/install/

(前準備) xymonユーザ追加

$ su -
# adduser xymon

xymonのサービスは xymonユーザで起動する必要があります。rootでも起動できるように思えますが、rootで起動しようとすると、次のようにエラーとなります。

# /home/xymon/server/xymon.sh start
Xymon must be started as the xymon user

(前準備) fping

$ wget http://fping.org/dist/fping-3.10.tar.gz
$ tar -zxvf fping-3.10.tar.gz
$ cd fping-3.10
$ ./configure
$ make
$ su
# make install
# chmod 4755 /usr/local/sbin/fping

「chmod 4755 〜」に関しては次のurlをご覧下さい。
fpingで「(null): can't create socket (must run as root?) : Protocol not supported」エラー - end0tknrのkipple - web写経開発

(前準備) RRDtool

$ wget http://oss.oetiker.ch/rrdtool/pub/rrdtool-1.4.9.tar.gz
$ tar -zxvf rrdtool-1.4.9.tar.gz
$ cd rrdtool-1.4.9
$ ./configure
checking build system type... i686-pc-linux-gnu
<略>
checking for glib_check_version in -lglib-2.0... no
checking for pkg-config... pkg-config
configure: WARNING:
----------------------------------------------------------------------------
* I found a copy of pkgconfig, but there is no glib-2.0.pc file around.
  You may want to set the PKG_CONFIG_PATH variable to point to its
  location.
----------------------------------------------------------------------------
configure: WARNING:
----------------------------------------------------------------------------
* I could not find a working copy of glib-2.0. Check config.log for hints on why
  this is the case. Maybe you need to set LDFLAGS and CPPFLAGS appropriately
  so that compiler and the linker can find libglib-2.0 and its header files. If
  you have not installed glib-2.0, you can get it either from its original home on
     ftp://ftp.gtk.org/pub/glib/2.28/
  You can find also find an archive copy on
     http://oss.oetiker.ch/rrdtool/pub/libs
  The last tested version of glib-2.0 is 2.28.7.
       LIBS=-lm
   LDFLAGS=
  CPPFLAGS=
----------------------------------------------------------------------------

checking for cairo_font_options_create in -lcairo... no
checking for pkg-config... (cached) pkg-config
configure: WARNING:
----------------------------------------------------------------------------
* I found a copy of pkgconfig, but there is no cairo-png.pc file around.
  You may want to set the PKG_CONFIG_PATH variable to point to its
  location.
----------------------------------------------------------------------------
configure: WARNING:
----------------------------------------------------------------------------
* I could not find a working copy of cairo-png. Check config.log for hints on why
  this is the case. Maybe you need to set LDFLAGS and CPPFLAGS appropriately
  so that compiler and the linker can find libcairo and its header files. If
  you have not installed cairo-png, you can get it either from its original home on
     http://cairographics.org/releases/
  You can find also find an archive copy on
     http://oss.oetiker.ch/rrdtool/pub/libs
  The last tested version of cairo-png is 1.10.2.
       LIBS=-lm
   LDFLAGS=
  CPPFLAGS=
----------------------------------------------------------------------------
<略>
checking for pango_cairo_context_set_font_options in -lpangocairo-1.0... no
checking for pkg-config... (cached) pkg-config
configure: WARNING:
----------------------------------------------------------------------------
* I found a copy of pkgconfig, but there is no pangocairo.pc file around.
  You may want to set the PKG_CONFIG_PATH variable to point to its
  location.
----------------------------------------------------------------------------
configure: WARNING:
----------------------------------------------------------------------------
* I could not find a working copy of pangocairo. Check config.log for hints on why
  this is the case. Maybe you need to set LDFLAGS and CPPFLAGS appropriately
  so that compiler and the linker can find libpangocairo-1.0 and its header files. If
  you have not installed pangocairo, you can get it either from its original home on
     http://ftp.gnome.org/pub/GNOME/sources/pango/1.28
  You can find also find an archive copy on
     http://oss.oetiker.ch/rrdtool/pub/libs
  The last tested version of pangocairo is 1.28.4.
       LIBS=-lm
   LDFLAGS=
  CPPFLAGS=
----------------------------------------------------------------------------
checking for xmlParseFile in -lxml2... yes
checking libxml/parser.h usability... yes
checking libxml/parser.h presence... yes
checking for libxml/parser.h... yes
configure: error: Please fix the library issues listed above and try again.
$

何やら、RRDtoolには依存パッケージ()があるようですので、追加でインストールします。

glib2

http://ftp.gnome.org/pub/gnome/sources/glib/2.43/glib-2.43.2.tar.xz からも取得できますが、glib2も依存パッケージが多い予感がしたので、yumでinstall。

$ su -
# yum install glib2
# yum install glib2-devel
cairo

http://cairographics.org/releases/ からsrc取得できますが、やはりyumで。

$ su -
# yum install cairo
# yum install cairo-devel
pango ( pangocairo )

http://ftp.gnome.org/pub/GNOME/sources/pango からsrc取得できますが、やはりyumで。

$ su -
# yum install pango
# yum install pango-devel

ここまでで、RRDtoolの依存ライブラリがそろったので、改めて、configure , make , make installで完了。

$ ./configure
$ make
$ su
# make install

xymon本体のinstall

$ wget http://downloads.sourceforge.net/project/xymon/Xymon/4.3.17/xymon-4.3.17.tar.gz
$ tar -zxvf xymon-4.3.17.tar.gz
$ su -
# cd /home/endo/tmp/xymon-4.3.17
# ./configure
What group-ID does your webserver use [nobody] ?  ※
-> daemon
What is the IP-address of this host [127.0.0.1] ? ※
-> 192.168.137.5

# make
# make install

※xymonのconfigureは対話式ですが、この中で私は「※」の2箇所のみ変更しました。

apacheの設定

httpd.confへの追記

/home/xymon/server/etc/xymon-apache.conf に apacheの設定内容が記載されていますので、これをapacheの設定ファイル(私の場合、/usr/local/apache22/conf/httpd.conf )へ追記します。
※参考にさせて頂いた http://www.server-kanshi.net/install/preparation.html では、
xymon-apache.conf をコピーするだけのように記載されていますが、コピーだけでは私の環境では動作しませんでした。

chmod 755 /home/xymon

xymonのwebページでは、/home/xymon/server/www を閲覧可能にする為、chmod します。

$ su -
# chmod 755 /home/xymon

apache , xymon の起動と動作確認

先程まででインストールと設定は完了しているので、apache , xymon の起動と動作確認を行います。

$ su -
# /usr/local/apache22/bin/apachectl restart
# su - xymon
$ /home/xymon/server/xymon.sh start ※
Xymon started

xymon.shはxymonユーザで起動する必要があり、このスクリプトが監視結果を定期的(5分毎?)に /home/xymon/server/www/critical.html , index.html , nongreen.html red.html ,xymon.html に作成します。

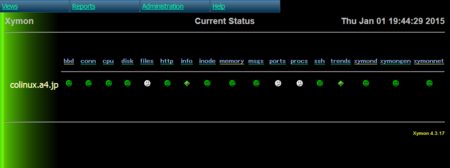

xymon.sh が *.htmlを作成する数分後に http://$ホスト名/xymon/ へアクセスし、次のような画面が表示されれば、動作確認も完了です。
