install WindowsApplicationDriver

またも「RPA風に使えるかも」関連.

appium & Windows Application Driver 経由でのwindowsアプリ操作を期待しましたが、 まず、appium の起動は不要でした。 また、単純なボタンのクリック等はできましたが、要素の探索等はできませんでした。 (詳しいドキュメントを見つけることができなかった為)

参考url

install WindowsApplicationDriver 関連

WindowsApplicationDriver自体は、 https://github.com/Microsoft/WinAppDriver から インストーラをダウンロードし、実行するだけで、 C:\Program Files (x86)\Windows Application Driver　にinstallされます

更にnodejsやpythonのモジュールをインストールすれば完了

C:\Users\end0t>npm install --global --production windows-build-tools
C:\Users\end0t>npm install appium-windows-driver
C:\Users\end0t>pip install Appium-Python-Client
C:\Users\end0t>pip install setuptools

install inspect.exe

捜査対象のアプリの要素名を調べる為、inspect.exe もあると便利です

https://developer.microsoft.com/ja-jp/windows/downloads/sdk-archive からダウンロードし、インストールすると、以下に配備されます。

C:\Program Files (x86)\Windows Kits\10\bin\10.0.17763.0\x64\inspect.exe

軽く動作確認

PS C:\Program Files (x86)\Windows Application Driver> pwd

Path
----
C:\Program Files (x86)\Windows Application Driver


PS C:\Program Files (x86)\Windows Application Driver> .\WinAppDriver.exe
Windows Application Driver listening for requests at: http://127.0.0.1:4723/
Press ENTER to exit.

↑こちらのように WinAppDriver.exe を起動した状態で ↓microsoftから配布されているサンプルscriptが動作すればOK

"""
//******************************************************************************
//
// Copyright (c) 2016 Microsoft Corporation. All rights reserved.
//
// This code is licensed under the MIT License (MIT).
//
// THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
// IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
// FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
// AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
// LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
// OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
// THE SOFTWARE.
//
//******************************************************************************
"""

import unittest
from appium import webdriver

class SimpleCalculatorTests(unittest.TestCase):

    def setUp(self):
        #set up appium
        desired_caps = {}
        desired_caps["app"] = "Microsoft.WindowsCalculator_8wekyb3d8bbwe!App"
        self.driver = webdriver.Remote(
            command_executor='http://127.0.0.1:4723',
            desired_capabilities= desired_caps)

    def tearDown(self):
        self.driver.quit()

    def test_initialize(self):
        self.driver.find_element_by_accessibility_id("clearButton").click()
        self.driver.find_element_by_accessibility_id("num7Button").click()

        result = self.driver.find_element_by_accessibility_id("CalculatorResults")
        self.assertIn(" 7 ", str(result.text))

    def test_addition(self):
        self.driver.find_element_by_accessibility_id("num1Button").click()
        self.driver.find_element_by_accessibility_id("plusButton").click()
        self.driver.find_element_by_accessibility_id("num7Button").click()
        self.driver.find_element_by_accessibility_id("equalButton").click()

        result = self.driver.find_element_by_accessibility_id("CalculatorResults")
        self.assertIn( " 8 ", str(result.text))

    def test_combination(self):
        self.driver.find_element_by_accessibility_id("num7Button").click()
        self.driver.find_element_by_accessibility_id("multiplyButton").click()
        self.driver.find_element_by_accessibility_id("num9Button").click()
        self.driver.find_element_by_accessibility_id("plusButton").click()
        self.driver.find_element_by_accessibility_id("num1Button").click()
        self.driver.find_element_by_accessibility_id("equalButton").click()
        self.driver.find_element_by_accessibility_id("divideButton").click()
        self.driver.find_element_by_accessibility_id("num8Button").click()
        self.driver.find_element_by_accessibility_id("equalButton").click()

        result = self.driver.find_element_by_accessibility_id("CalculatorResults")
        self.assertIn( " 8 ", str(result.text))

    def test_division(self):
        self.driver.find_element_by_accessibility_id("num8Button").click()
        self.driver.find_element_by_accessibility_id("num8Button").click()
        self.driver.find_element_by_accessibility_id("divideButton").click()
        self.driver.find_element_by_accessibility_id("num1Button").click()
        self.driver.find_element_by_accessibility_id("num1Button").click()
        self.driver.find_element_by_accessibility_id("equalButton").click()

        result = self.driver.find_element_by_accessibility_id("CalculatorResults")
        self.assertIn( " 8 ", str(result.text))

    def test_multiplication(self):
        self.driver.find_element_by_accessibility_id("num9Button").click()
        self.driver.find_element_by_accessibility_id("multiplyButton").click()
        self.driver.find_element_by_accessibility_id("num9Button").click()
        self.driver.find_element_by_accessibility_id("equalButton").click()

        result = self.driver.find_element_by_accessibility_id("CalculatorResults")
        self.assertIn( " 81 ", str(result.text))

    def test_subtraction(self):
        self.driver.find_element_by_accessibility_id("num9Button").click()
        self.driver.find_element_by_accessibility_id("minusButton").click()
        self.driver.find_element_by_accessibility_id("num1Button").click()
        self.driver.find_element_by_accessibility_id("equalButton").click()

        result = self.driver.find_element_by_accessibility_id("CalculatorResults")
        self.assertIn( " 8 ", str(result.text))



if __name__ == '__main__':
    suite = unittest.TestLoader().loadTestsFromTestCase(SimpleCalculatorTests)
    unittest.TextTestRunner(verbosity=2).run(suite)

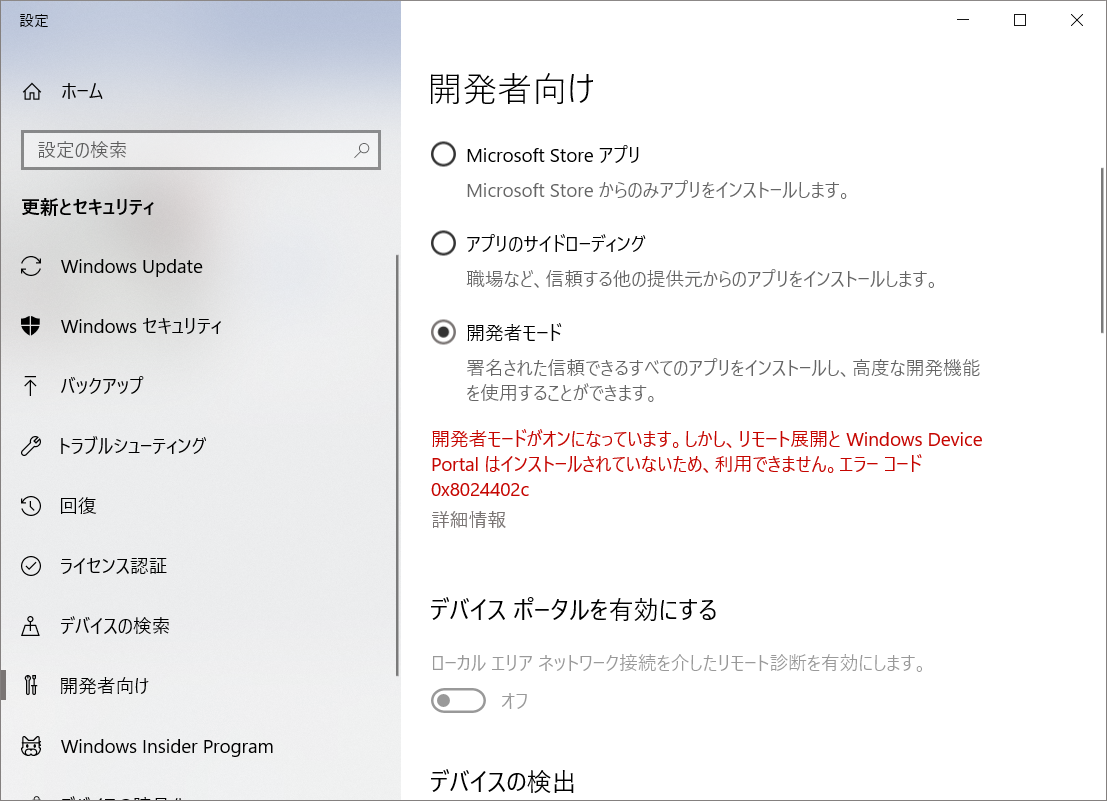

開発者モード設定画面で、エラー?が表示されましたが、気にせず進めてもよさそうです

f:id:end0tknr:20190323195602p:plain
